Deploy ThreatLocker to macOS devices with Hexnode UEM

ThreatLocker, a zero-trust endpoint protection platform, provides robust cybersecurity solutions to organizations, ensuring continuous verification and protection against potential threats. ThreatLocker protects endpoints from a wide variety of threats, including phishing, malware, ransomware, rootkits, password attacks, and IoT attacks. This document will assist you through the step-by-step process for deploying ThreatLocker to macOS devices with the help of Hexnode UEM guaranteeing strong protection against cybersecurity threats.

How to deploy ThreatLocker

ThreatLocker can be deployed to macOS devices using Hexnode’s Scripts policy. Deploying ThreatLocker to devices involves configuring System Extensions, Notification Settings, and Web Content Filtering. You can use a single policy or separate ones to configure the System Extension, a configuration profile with Notification Settings and Web Content Filtering, and the ThreatLocker app installation script. In this document, we will configure all these settings in a single policy.

Follow these steps to deploy ThreatLocker to macOS endpoints:

ThreatLocker installation script

1. In the Hexnode UEM portal, navigate to Policies > New Policy > macOS.
2. Select Scripts from the left menu and click on Configure.
3. Click on Choose Scripts and choose the ThreatLocker installation script. The script should be modified to include your Group Key which can be obtained from the ThreatLocker portal.
   Script to install ThreatLocker on macOS devices

   #!/bin/bash GroupKey="xxxxxxxxxxxxxxxxxxxxxxxx" # Check if the script is run with administrative privileges if [ "$(id -u)" != "0" ]; then echo "This script must be run as root or with sudo." exit 1 fi # Function to remove ThreatLocker app only if it exists in the Applications directory cleanup() { if [ -d /Applications/ThreatLocker.app ]; then echo "Cleaning up: Removing ThreatLocker application" rm -rf /Applications/ThreatLocker.app else echo "Application not installed" fi } # Function to check system extension state check_system_extension_state() { extensionIdentifier="com.threatlocker.app.agent" extensionStates=$(systemextensionsctl list | grep "$extensionIdentifier") activatedEnabledFound=false while IFS= read -r line; do if [[ $line == *"activated enabled"* ]]; then echo "ThreatLocker installed." return 0 elif [[ $line == *"activated waiting for user"* ]]; then echo "ThreatLocker installed; waiting on user input to permit system extension." return 1 fi done <<< "$extensionStates" return 2 } # Start of the script's main logic if [ -d /Applications/ThreatLocker.app ]; then echo "ThreatLocker already installed. Checking status..." if pgrep -x "ThreatLocker" > /dev/null; then check_system_extension_state case $? in 0) echo "ThreatLocker is running." exit 0 ;; 1) echo "Action required: waiting on user input to permit system extension.." exit 1 ;; 2) open /Applications/ThreatLocker.app --args -groupKey $GroupKey echo "Starting ThreatLocker..." sleep 15 check_system_extension_state ;; esac else open /Applications/ThreatLocker.app --args -groupKey $GroupKey echo "Starting ThreatLocker..." sleep 15 check_system_extension_state fi else echo "Downloading and installing ThreatLocker..." # Make API call and extract version number Response=$(curl -H "InstallKey: $GroupKey" -s -w "%{http_code}" -o /tmp/threatlocker_version.json https://api.threatlocker.com/getgroupkey.ashx) if [ "$Response" -ne 201 ]; then echo "Unable to retrieve version number or invalid group key." exit 1 fi Version=$(awk -F ':' '/URL/ {print $2}' /tmp/threatlocker_version.json | tr -d '"') if [ -z "$Version" ]; then exit 1 fi curl --output "/private/var/tmp/ThreatLocker.app.zip" "https://updates.threatlocker.com/repository/mac/$Version/ThreatLocker.app.zip" unzip -qq /private/var/tmp/ThreatLocker.app.zip -d /Applications chown -R root:wheel /Applications/ThreatLocker.app if [ ! -d /Applications/ThreatLocker.app ]; then echo "Unable to download ThreatLocker." exit 1 fi open /Applications/ThreatLocker.app --args -groupKey $GroupKey echo "Installing ThreatLocker..." sleep 15 check_system_extension_state result=$? if [ $result -eq 0 ]; then echo "ThreatLocker installed successfully." elif [ $result -eq 1 ]; then echo "Action required: User must permit system extension." exit 1 else echo "An error occurred during installation." cleanup exit 1 fi fi

   1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102

   #!/bin/bash GroupKey="xxxxxxxxxxxxxxxxxxxxxxxx"   # Check if the script is run with administrative privileges if [ "$(id -u)" != "0" ]; then     echo "This script must be run as root or with sudo."     exit 1 fi   # Function to remove ThreatLocker app only if it exists in the Applications directory cleanup() {     if [ -d /Applications/ThreatLocker.app ]; then         echo "Cleaning up: Removing ThreatLocker application"         rm -rf /Applications/ThreatLocker.app     else         echo "Application not installed"     fi }   # Function to check system extension state check_system_extension_state() {     extensionIdentifier="com.threatlocker.app.agent"     extensionStates=$(systemextensionsctl list | grep "$extensionIdentifier")     activatedEnabledFound=false       while IFS= read -r line; do         if [[ $line == *"activated enabled"* ]]; then             echo "ThreatLocker installed."             return 0         elif [[ $line == *"activated waiting for user"* ]]; then             echo "ThreatLocker installed; waiting on user input to permit system extension."             return 1         fi     done <<< "$extensionStates"       return 2 }   # Start of the script's main logic if [ -d /Applications/ThreatLocker.app ]; then     echo "ThreatLocker already installed. Checking status..."     if pgrep -x "ThreatLocker" > /dev/null; then         check_system_extension_state         case $? in             0)  echo "ThreatLocker is running."                 exit 0                 ;;             1)  echo "Action required: waiting on user input to permit system extension.."                 exit 1                 ;;             2)  open /Applications/ThreatLocker.app --args -groupKey $GroupKey                 echo "Starting ThreatLocker..."                 sleep 15                 check_system_extension_state                 ;;         esac     else         open /Applications/ThreatLocker.app --args -groupKey $GroupKey         echo "Starting ThreatLocker..."         sleep 15 check_system_extension_state     fi else     echo "Downloading and installing ThreatLocker..."       # Make API call and extract version number     Response=$(curl -H "InstallKey: $GroupKey" -s -w "%{http_code}" -o /tmp/threatlocker_version.json https://api.threatlocker.com/getgroupkey.ashx)     if [ "$Response" -ne 201 ]; then         echo "Unable to retrieve version number or invalid group key."         exit 1     fi       Version=$(awk -F ':' '/URL/ {print $2}' /tmp/threatlocker_version.json | tr -d '"')     if [ -z "$Version" ]; then         exit 1     fi       curl --output "/private/var/tmp/ThreatLocker.app.zip" "https://updates.threatlocker.com/repository/mac/$Version/ThreatLocker.app.zip"     unzip -qq /private/var/tmp/ThreatLocker.app.zip -d /Applications chown -R root:wheel /Applications/ThreatLocker.app     if [ ! -d /Applications/ThreatLocker.app ]; then         echo "Unable to download ThreatLocker."         exit 1     fi           open /Applications/ThreatLocker.app --args -groupKey $GroupKey     echo "Installing ThreatLocker..."     sleep 15     check_system_extension_state     result=$?          if [ $result -eq 0 ]; then         echo "ThreatLocker installed successfully."     elif [ $result -eq 1 ]; then         echo "Action required: User must permit system extension."         exit 1     else         echo "An error occurred during installation."         cleanup         exit 1     fi fi

4. Click on Configure.

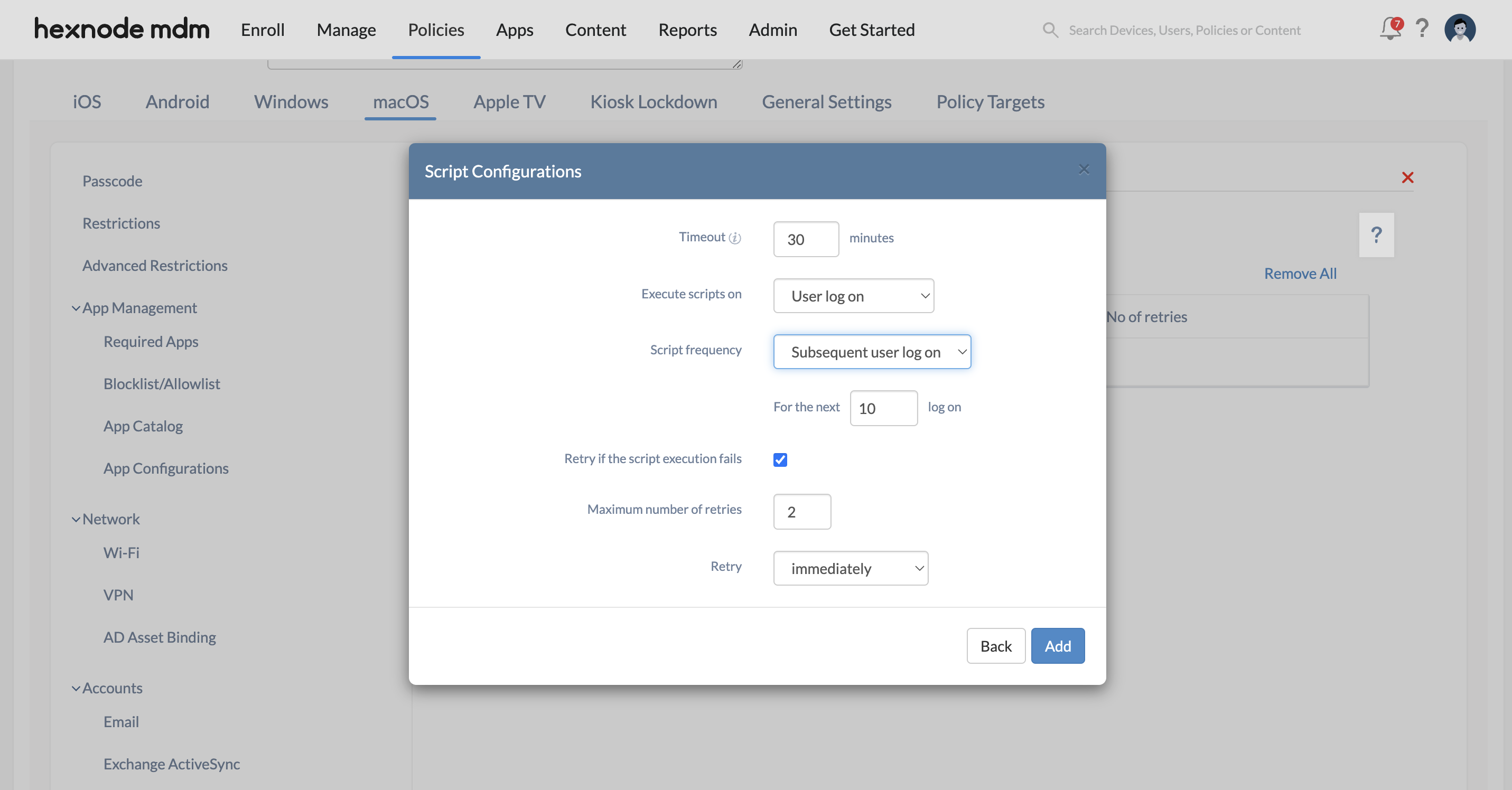

5. Once the script is added, a window will show up to configure the installation settings based on the requirements. Here, we are setting the script to execute on subsequent user log on.



Configure System Extensions

1. Select System Extensions under Configurations from the left menu and click on Configure.
2. Under the Team Identifiers section, enter MSY54GN4KF as the identifier and click on Add.

Configure Web Content Filtering and Notification Settings

Web Content Filtering and Notification Settings can be configured using Hexnode’s Deploy Custom Configuration feature.

1. Under the macOS tab, navigate to Configurations > Deploy Custom Configuration.
2. Click Configure.
3. Click on Choose File and upload the .mobileconfig, .xml, or .plist file. You can either use the configuration profile given below or create your own custom configuration profile using any profile creator tools.
4. Click OK.
   Web Content Filtering and Notification Settings configuration profile

   <?xml version="1.0" encoding="UTF-8"?> <!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd"> <plist version="1.0"> <dict> <key>PayloadContent</key> <array> <dict> <key>FilterDataProviderBundleIdentifier</key> <string>com.threatlocker.app</string> <key>FilterDataProviderDesignatedRequirement</key> <string>anchor apple generic and identifier "com.threatlocker.app" and (certificate leaf[field.1.2.840.113635.100.6.1.9] /* exists */ or certificate 1[field.1.2.840.113635.100.6.2.6] /* exists */ and certificate leaf[field.1.2.840.113635.100.6.1.13] /* exists */ and certificate leaf[subject.OU] = MSY54GN4KF) </string> <key>FilterGrade</key> <string>inspector</string> <key>FilterSockets</key> <true/> <key>FilterType</key> <string>Plugin</string> <key>PayloadDisplayName</key> <string>Web Content Filter</string> <key>PayloadIdentifier</key> <string>com.apple.webcontent-filter.F1181281-7161-4DD4-8274-C93347FDB7A5</string> <key>PayloadType</key> <string>com.apple.webcontent-filter</string> <key>PayloadUUID</key> <string>F1181281-7161-4DD4-8274-C93347FDB7A5</string> <key>PayloadVersion</key> <integer>1</integer> <key>PluginBundleID</key> <string>com.threatlocker.app</string> <key>UserDefinedName</key> <string>ThreatLocker</string> </dict> <dict> <key>NotificationSettings</key> <array> <dict> <key>BadgesEnabled</key> <true/> <key>BundleIdentifier</key> <string>com.threatlocker.app.UIAgent</string> <key>CriticalAlertEnabled</key> <false/> <key>NotificationsEnabled</key> <true/> <key>ShowInCarPlay</key> <true/> <key>ShowInLockScreen</key> <true/> <key>ShowInNotificationCenter</key> <true/> <key>SoundsEnabled</key> <true/> </dict> </array> <key>PayloadDisplayName</key> <string>Notifications</string> <key>PayloadIdentifier</key> <string>com.apple.notificationsettings.2E51FC87-6849-4B09-960A-434EEFCD0F14</string> <key>PayloadType</key> <string>com.apple.notificationsettings</string> <key>PayloadUUID</key> <string>2E51FC87-6849-4B09-960A-434EEFCD0F14</string> <key>PayloadVersion</key> <integer>1</integer> </dict> </array> <key>PayloadDisplayName</key> <string>ThreatLocker Notifications and Web Content Filtering Configuration</string> <key>PayloadIdentifier</key> <string>FD9F7BD2-89AE-46E9-8902-F96E3A32AEBA</string> <key>PayloadType</key> <string>Configuration</string> <key>PayloadUUID</key> <string>FD9F7BD2-89AE-46E9-8902-F96E3A32AEBA</string> <key>PayloadVersion</key> <integer>1</integer> </dict> </plist>

   1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78

   <?xml version="1.0" encoding="UTF-8"?> <!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd"> <plist version="1.0"> <dict> <key>PayloadContent</key> <array> <dict> <key>FilterDataProviderBundleIdentifier</key> <string>com.threatlocker.app</string> <key>FilterDataProviderDesignatedRequirement</key> <string>anchor apple generic and identifier "com.threatlocker.app" and (certificate leaf[field.1.2.840.113635.100.6.1.9] /* exists */ or certificate 1[field.1.2.840.113635.100.6.2.6] /* exists */ and certificate leaf[field.1.2.840.113635.100.6.1.13] /* exists */ and certificate leaf[subject.OU] = MSY54GN4KF) </string> <key>FilterGrade</key> <string>inspector</string> <key>FilterSockets</key> <true/> <key>FilterType</key> <string>Plugin</string> <key>PayloadDisplayName</key> <string>Web Content Filter</string> <key>PayloadIdentifier</key> <string>com.apple.webcontent-filter.F1181281-7161-4DD4-8274-C93347FDB7A5</string> <key>PayloadType</key> <string>com.apple.webcontent-filter</string> <key>PayloadUUID</key> <string>F1181281-7161-4DD4-8274-C93347FDB7A5</string> <key>PayloadVersion</key> <integer>1</integer> <key>PluginBundleID</key> <string>com.threatlocker.app</string> <key>UserDefinedName</key> <string>ThreatLocker</string> </dict> <dict> <key>NotificationSettings</key> <array> <dict> <key>BadgesEnabled</key> <true/> <key>BundleIdentifier</key> <string>com.threatlocker.app.UIAgent</string> <key>CriticalAlertEnabled</key> <false/> <key>NotificationsEnabled</key> <true/> <key>ShowInCarPlay</key> <true/> <key>ShowInLockScreen</key> <true/> <key>ShowInNotificationCenter</key> <true/> <key>SoundsEnabled</key> <true/> </dict> </array> <key>PayloadDisplayName</key> <string>Notifications</string> <key>PayloadIdentifier</key> <string>com.apple.notificationsettings.2E51FC87-6849-4B09-960A-434EEFCD0F14</string> <key>PayloadType</key> <string>com.apple.notificationsettings</string> <key>PayloadUUID</key> <string>2E51FC87-6849-4B09-960A-434EEFCD0F14</string> <key>PayloadVersion</key> <integer>1</integer> </dict> </array> <key>PayloadDisplayName</key> <string>ThreatLocker Notifications and Web Content Filtering Configuration</string> <key>PayloadIdentifier</key> <string>FD9F7BD2-89AE-46E9-8902-F96E3A32AEBA</string> <key>PayloadType</key> <string>Configuration</string> <key>PayloadUUID</key> <string>FD9F7BD2-89AE-46E9-8902-F96E3A32AEBA</string> <key>PayloadVersion</key> <integer>1</integer> </dict> </plist>

Associate target device

1. Navigate to Policy Targets and select the Devices, Device Groups, Users, User Groups, or Domains you would like to associate the policy with.
2. Click on Save.

What happens at the device end?

Once the ThreatLocker app is successfully deployed on macOS devices through Hexnode UEM, the devices will be added to the ThreatLocker portal. It ensures that the devices will be actively managed and protected against a wide range of threats including phishing, malware, ransomware, rootkits, password attacks, and IoT vulnerabilities.
